Invivo Precess 3160

Description

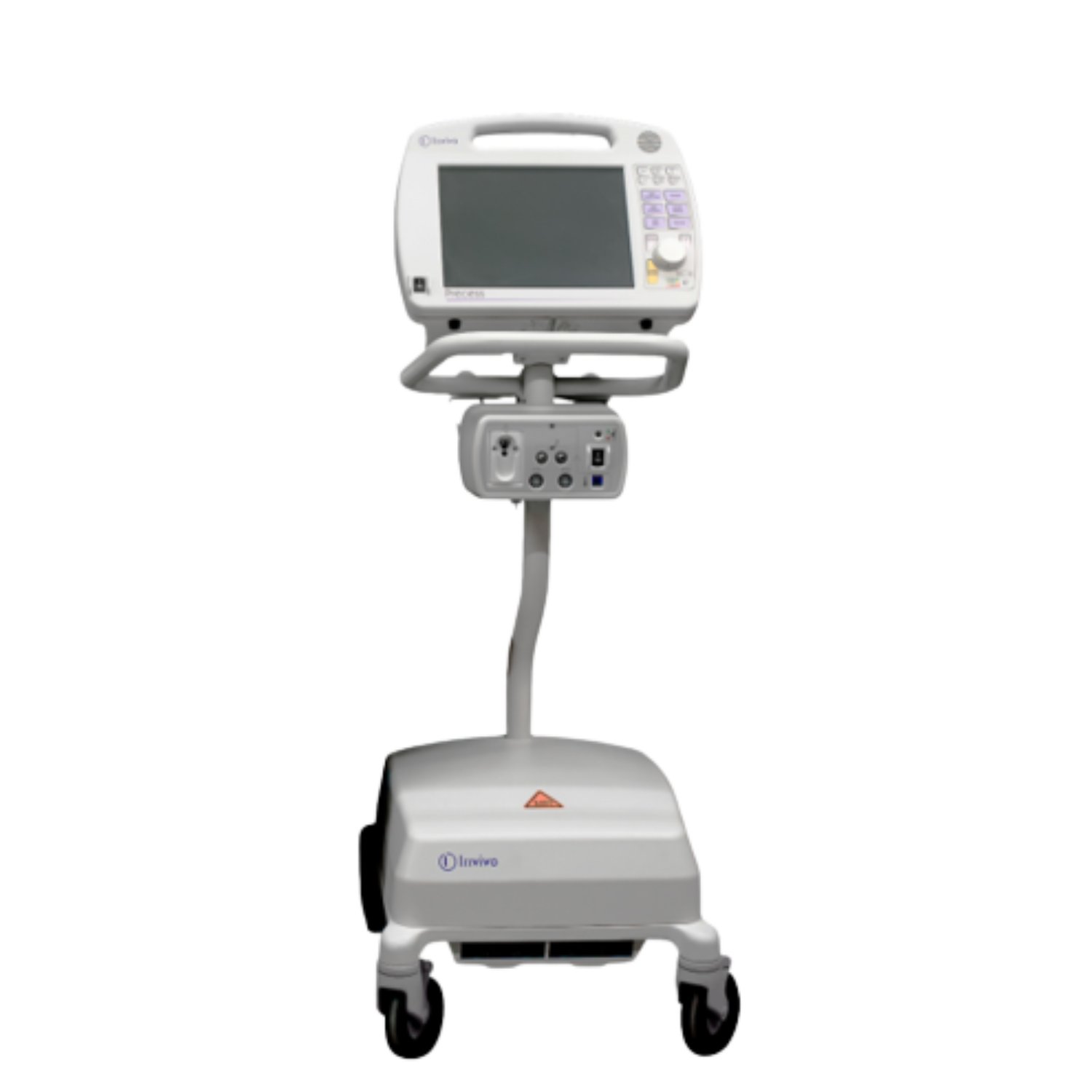

The Invivo Precess MRI 3160 is a MRI-compatible patient monitor that delivers a full range of parameters. The first MRI monitor on the market to feature wireless ECG and SpO2 monitoring capabilities, the Invivo Precess MRI 3160 is compatible with 5,000 Gauss in any parameter configuration.

The Invivo Precess MRI 3160 Patient Monitor is available professionally refurbished from Avante Health Solutions. For more information, contact your Avante representative today.

Features
Full-featured monitor measures ECG, SpO2, EtCO2, Agent, FiberTEMP, NIBP, RESP, IBP.
First MRI monitor to feature wireless ECG and SpO2 monitoring capabilities.
Cardiac and peripheral gating.
5,000 Gauss compatibility regardless of parameter configuration.
Smart battery management system indicates battery life for each device.
User replaceable batteries allow for continuous battery operation.

Wireless SpO2:

• Advanced, low perfusion technology.
• Adult, pediatric, and neonatal grip sensors.
• 8 hours battery life with user replaceable batteries.
• Short fiber-optic helps to reduce risk of sensor damage.

Wireless ECG:

• Adult, pediatric, neonatal and cardiovascular MRI applications.
• 8 hours of battery life with user replaceable batteries.
• Shorter ECG cable increases patient safety.
• Quatrode MRI ECG compatible.

Wireless Remote Display:

• Large, easy-to-read MRI compatible color display.
• Intuitive, easy-to-use interface.
• 2.4 GHz wireless communication.
• 8 hours battery life with user replaceable batteries.

SPECIFICATIONS

Power Requirements

• Operating Voltage Range: 100 to 240 VAC
• Frequency: 47 to 65 HZ
• Power Consumption, Maximum: < 100 Watts

Height

• Cart: 48.5 ± 0.5 inches
• CRD: 10.4 inches
• Wireless ECG module: 4.7 inches
• Wireless SpO2 module: 5.5 inches

Width

• Cart: 17.5 ± 0.5 inches
• CRD: 15.3 inches
• Wireless ECG module: 2.5 inches
• Wireless SpO2 module: 2.5 inches

Depth

• Cart: 17.5 ± 0.5 inches
• CRD: 4.6 inches
• Wireless ECG module: 0.91 inches
• Wireless SpO2 module: 0.91 inches

Weight

• Cart: 75 ± 0.5 lbs
• CRD: 20 lbs
• Wireless ECG module: 5.4 oz
• Wireless SpO2 module: 5.4 oz
